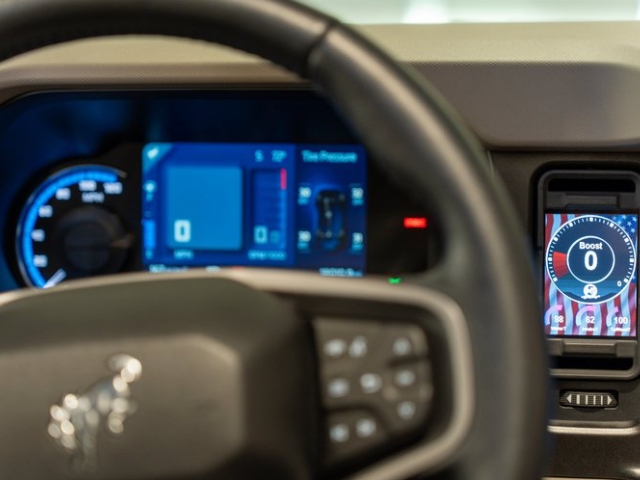

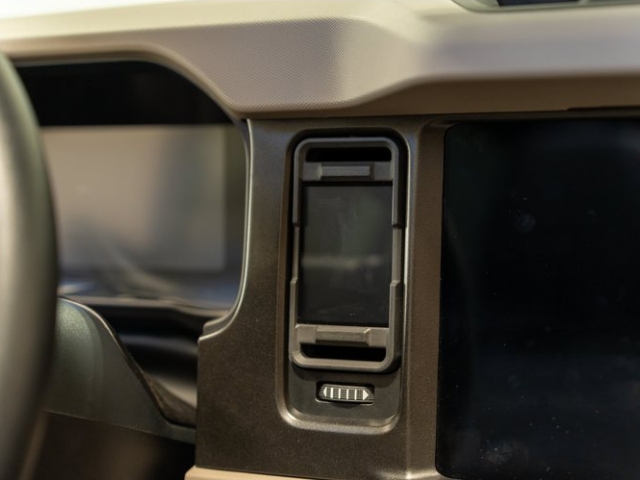

We are excited to introduce our state-of-the-art display for Ford Bronco models. This groundbreaking display provides you with comprehensive access to all crucial vehicle data. We mean all relevant information, truly. Our display reads these data directly through the Can-Bus protocol and presents them on our reliable MFD28 display. The Ford Bronco Display seamlessly integrates into your vehicle's design and comes with a custom-made bezel that perfectly complements the aesthetics.
The specially adapted Can-Bus protocol has been developed with the utmost precision to ensure the fastest query speed possible.
THE HIGHLIGHTS
- Seamless integration into the vehicle design
- Reading data from up to 128 sensors
- 10 individually customizable display modes thanks to our DSS - Display Setup Software
- Pre-installed display modes for a quick start
- Easy plug-and-play installation with our cable kit - simply connect and go
- 4 additional analog inputs for monitoring exhaust temperature, oil pressure, and more
- Integrated option for connecting an ethanol sensor
- Optimal readability with optional glare protection
- Diagnostics-friendly sensor querying at eye level
- Data logging - continuous or on demand
ADDITIONAL FEATURES
- Performance Tracker: Measure your acceleration times with our performance widget - 0-100, 100-200, 0-200.
- Data Logging: Log all data on the internal SD card - whether on request (start with a fingertip) or continuously. All data from your last drive is stored.
- Customizable Alerts: Activate and customize pre-installed alerts, such as exceeding an exhaust temperature of 900 degrees.
- 4 additional analog inputs: Connect additional sensors, such as temperature or pressure sensors, to utilize advanced monitoring functions, including exhaust temperature or exhaust back pressure. An ethanol sensor can be connected to one of the digital inputs.
- Error Reading/Deletion: Read and clear error messages from the engine control unit clearly and promptly.
- Personalization: Customize the startup screen or choose from various widgets to tailor the display to your preferences.
- Seamless Vehicle Integration: Our display is compatible with all left-hand drive and right hand drive models
Access to All Vehicle Data: We provide a pre-configured TRI file for your display by default. It includes all queryable sensors, including:
Temperatures: Engine coolant temperature, intake air temperature, exhaust gas temperature, transmission temperature.
Pressures: Boost pressure, ambient pressure, oil pressure.
Lambda/Fuel Mixture: Lambda target/actual value, short-term lambda adaptation, long-term lambda adaptation, MAF (mass airflow sensor), engine load, torque.
Driver Dynamics: Brake pressure, vehicle speed, throttle angle/gas pedal position.
Other: Engine speed, total ignition angle, gear, battery voltage, ignition angle correction per cylinder.
Analog Inputs: You can add additional sensors like oil temperature, fuel pressure, oil pressure, exhaust gas temperature, and more, as well as an ethanol sensor for flex-fuel applications.
Please note that not every engine provides all of these data points.
COMPATIBILITY
The display frame fits all Ford Bronco models up from 2021.
PACKAGE CONTENTS
- Integrated MFD28 Gen2 data display on the dashboard
- Vehicle-specific connection cable
- Quick start guide
- USB data cable
- SD card (pre-installed in the display)
- SD card adapter
- Display protective film (to prevent reflections)
CONNECTION AND EXPANSION OPTIONS
You can connect various sensors via the four analog inputs - both linear 0-5V and NTC sensors are supported.
Our in-house Wagner Tuning Display sensors are already integrated into the TRI/TRX files and only need to be connected:
- AIN1: Temperature sensor
- AIN2: Exhaust gas temperature sensor Type K
- AIN3: Pressure sensor 0-10 Bar
- AIN4: Boost pressure sensor 0-5.5 Bar absolute
In addition to the analog sensors, you can also connect our external flash module with 8 LEDs directly. It can flash in various colors to indicate rev limits, and the colors can be easily configured via the display.
The ethanol sensor is connected directly to the display. A pull-up resistor (10K) between 5V and signal is required. Afterward, you can read and log the ethanol content and temperature directly on the display.
ADVANCED FEATURES
You can link sensor data using math channels. User tables allow you to create additional sensors with 2D or 3D maps.
OPTIONAL ACCESSORIES
- WT24000 SLM08 - external switching lightning module
- WT22100 CBD08 - eightfold Can Distribution Hub
- WT22902 NTC01 - temperature sensor for liquids 1/8" NPT
- WT22903 TCC01 - type K converter 0-1250°C
- WT22901 FLP01 - Pressure sensor 0-10 Bar (145psi) M10x1
- WT22900 BST01 - Pressure sensor 0-5,5 Bar absolute (80psi)
