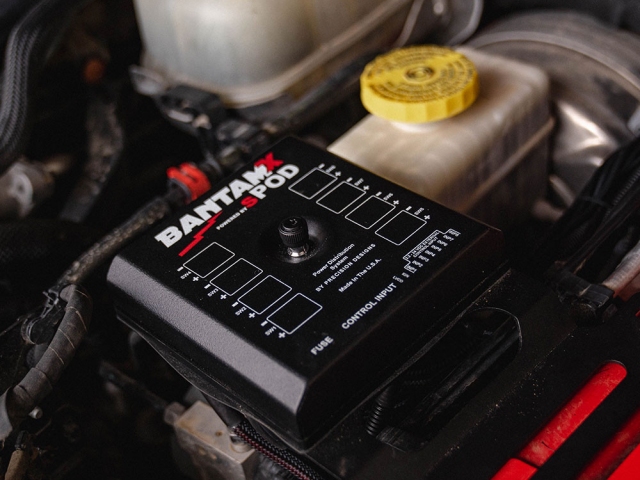

The BantamX HD system for the Jeep JL/JT is your go-to solution for simplifying wiring and installation. This compact, 8-circuit (expandable) control system powers and manages 12/24VDC accessories with just a single Ethernet cable into the cab. With the Jeep-specific mounting bracket and small footprint, installing the BantamX under the hood is hassle-free. This versatile system is the perfect solution for all your aftermarket electrical accessories without the need for cutting, fishing wires, or tapping into your vehicle's electrical system. It's the ultimate solution for all your aftermarket electrical needs.
Backed by sPOD's 5-year manufacturer warranty*, the BantamX power management system keeps you in control wherever you are. Download the sPOD app from the Apple App Store or Google Play and take command of your Jeep’s electrical accessories with ease.
KEY FEATURES
- Programmable System: 8 circuits, each rated at 30 amps at 12.5 VDC.

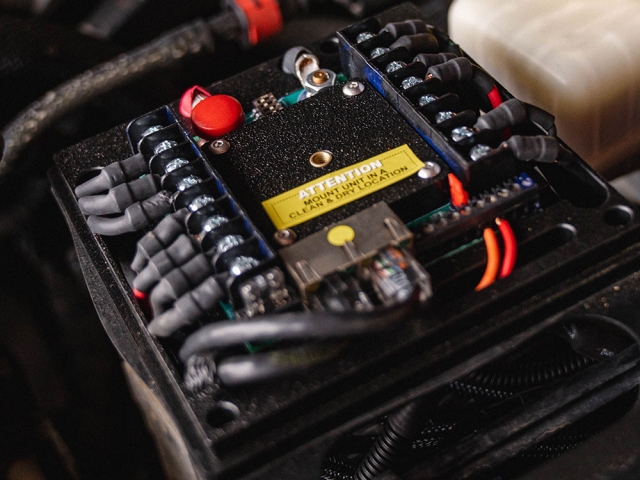

- Easy Accessory Attachment: 16-position terminal block and 2 RJ45 controller ports for Ethernet cables.
- Battery Protection: Integrated low voltage cutoff with optional override, and a 100-amp inline fuse.
- Advanced Technology: Microprocessor-controlled MOSFETs (no fuses/relays) with built-in Bluetooth for remote control.
- Compact Size: Smaller than an iPhone, with multiple mounting options.
- Built-In Bluetooth LE: Program and control the system via the sPOD app on iOS and Android devices.
- Customizable Switches: Program each switch for dimming, flash, momentary, strobe, and switch linking.
- Backlit & Adjustable: RGB backlighting with customizable colors, brightness, and status indicators.
- Safety & Security: Panel lock-out feature and additional HD smart controller option.
- Connectivity: RJ45 jack for communication, and the panel can be located up to 25 feet from the source using standard CAT-6 Ethernet cable.
Safety Features: Protection against overheating, over-current, shorts, reverse polarity, and field collapse.
- Optional Ignition Control: Safety lock-out for switches 1 and 2.
HARDWARE
- Durable Design: Powder-coated steel base, weatherproof silicone gasket, and aluminum lid with thumb screw fastening.
- Flexible Mounting: Universal and vehicle-specific options available.
- Robust Construction: Insulated base and cover for added protection.
sPOD Mobile App Control (Free):
- Switch Customization: Program each switch for dimming, strobe, flash, momentary, and switch linking.
- Operation Modes: Choose between On-Road and Off-Road modes.
- Pro-Series Mobile App Features (Available for Purchase):
- Advanced Controls: Circuit timers, switch lockout, programmable current limiting, and more.
- Enhanced Protection: Customize fault protection and deep sleep mode options.
- Ignition Control: Programmable for all 8 circuits.
- Custom Flash Patterns: Create variable strobe patterns.

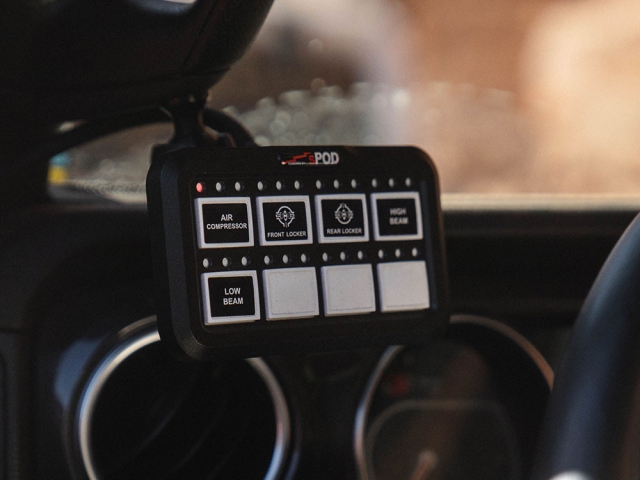

HD Control Panel
- The HD Control Panel is encased in durable, black powder-coated billet aluminum, featuring silicone-encapsulated tactile switches for reliable performance in harsh environments. Compact and versatile, this panel is designed for seamless integration and customization.
Note: Bluetooth range is limited due to the precision-machined billet aluminum housing, with a typical range of 5 to 15 feet depending on location and surroundings.
INSTALLATION INSTRUCTIONS
sPOD 870025 Installation Sheet
DISCLAIMER
Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care. Buyer acknowledges that some products may only be used when off-roading, and Buyer will comply with all vehicle and road safety guidelines. Buyer is solely responsible for (and will indemnify and hold Bestop harmless for) any claims, losses, damages, fines, fees, costs, or other amounts arising out of Buyer's non-compliance with these provisions.
WARRANTY AND REPAIR POLICY
sPOD offers a non-transferable 5-year limited warranty on electronic parts and components from manufacturers defects for all units purchased after 4/1/23. sPOD will repair or replace items in question and return them to Buyer at no charge. If the identical product is no longer available, sPOD will replace with a similar product of equal value. sPOD will not be responsible for any indirect or consequential damages in connection with defective merchandise.
Exclusions:
Products that have been subjected to abuse, misuse, accident, alteration, modification, improper installation, tampering, or any use other than the product's designed purpose will void the warranty. The sPOD warranty excludes the following: Installation errors, abuse, misuse or crash damage, reverse polarity of battery cables, changing the 2 amp fuse for any other rated fuse, cutting off our connectors, splicing into our wires/harnesses, attaching anything other than our battery cables to our positive and negative terminal studs on our BantamX/SourceLT boards, changing our supplied switches (switch body), removing the actuators without using our specific actuator removal tool.
This warranty shall be automatically voided if the items sent for warranty replacement are modified in any way or were not used as intended or applicable. Additionally, this warranty excludes normal wear and tear. NOTE: Any or all aftermarket brake controllers, hi-amp solenoids or any hi-amp relay that is attached to the same positive battery post will cause irreversible damage to the sPOD system. This will void all warranties. This warranty shall be automatically voided if the items sent for warranty replacement are returned with water/liquid/chemical damage to any electrical component. The buyer MUST provide a copy of the original invoice or have completed the online product registration. Shipping responsibilities and/or charges will be determined once a claim has been opened. sPOD systems will be repaired or replaced at manufacturer’s discretion.
This warranty does not cover miscellaneous expenses, including, but not limited to, outside labor costs incurred for the installation, removal, replacement, and repair or troubleshooting. Please contact sPOD to assist with troubleshooting prior to uninstalling your entire system as the solution may not require that the system be removed. All claims must be made in writing by mail or e-mail directly to sPOD:
By Mail: sPOD
2950 Norman Strasse Road
San Marcos, CA 92069
By E-mail: sales@4x4s-pod.com
