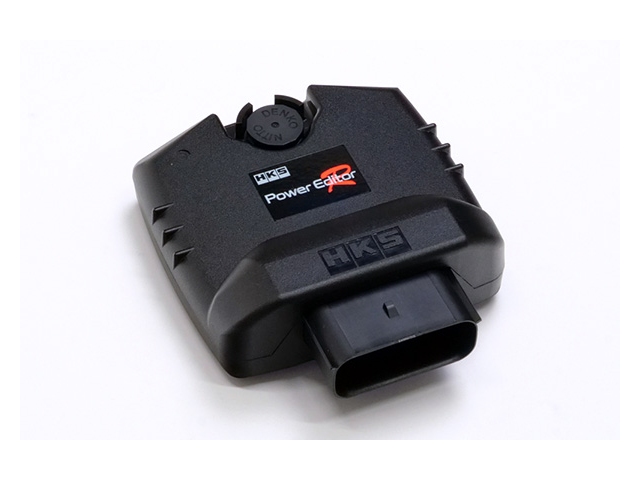

Easy plug and play installation to increase the boost pressure. The Power Editor R main unit pre-set the boost-up data. It is easy to boost up with the interrupting connection to the sensor harness of the vehicle.
Summary
Easy plug and play installation to increase the boost pressure. The Power Editor R main unit pre-set the boost-up data. It is easy to boost up with the interrupting connection to the sensor harness of the vehicle.
* Intake manifold pressure sensor, turbo pressure sensor, air flow sensor, cam angle sensor (rotation signal), vehicle speed signal (connect optionally).
* The wiring process is necessary for connecting the vehicle speed signal.
Many boost-up products use rotation signals for control, but Power Editor R uses vehicle speed and rotation signals. This makes it possible to control each gear with the optimal correction value.
The Easy Writer for Power Editor R (free) allows users to create their own original custom data. Therefore, detailed settings are possible based on the individual vehicle.
* Easy Writer for Power Editor R is not provided in the product. Please download it from the HKS official website.
* Windows PC (Windows10/11) is necessary.
By using the map changeover switch harness (included), you can switch between the two patterns of settings saved in the main unit. (The switch is not included in the package, so please prepare it yourself.)
You can return it to the normal state by using the provided return connector (*1), even after installing this product (after wiring).
Main unit function
By using the RPM signal, vehicle speed signal, and throttle signal, the 4-channel voltage signal and the 1-channel pulse-type air flow signal can be corrected.
CAUTION
Please be careful about setting mistakes and data entry mistakes. There is a risk of damaging the engine. In that case, please note that we do not take any responsibility.
Function of the Easy Writer
Easy Writer for Power Editor R is significantly more powerful than the previous Power Editor.
Easy Writer for Power Editor [Correction Map]
[Data monitor function]
[Data lock function]
Power Editor for Easy Writer
Easy Writer for Power Editor R [Correction Map]
[Data monitor function]
- Monitor the input value of the sensor and track the reading position in real time.
- REV, SPD, and THR are shown in the graphical representation. You can easily find the point to check sensuously.
- The log data can be saved and reviewed later
[Data lock function]
- Protect the written data to the main unit that uses a 4-digit lock number.
[Warmup time function]
- You can set the time from when the engine starts until the correction starts.
[Noise cancellation function]
- It can be set to the width of the noise you want to cancel by pulse inputting of the rotation signal or vehicle speed signal.
Power Editor R for EasyWriter Download
Precaution
- Setting by Easy Writer is required after installing this product.
- This product is applicable to the vehicle equipped with the boost pressure control sensor.
- Excessive boost increase may cause serious damage to the engine and/or turbine.
