With the Rebel LS, all the hard work is done. It is the best, quickest, and easiest way to get your LS-swap up and running!
ECU designed from the ground up to suit GM's popular LS engine platform
Start-up is a breeze thanks to the new LS Set-up Wizard in our NSP software
Comes complete with an easy-to-install harness to suit multiple GM LS applications
Easy integration with Haltech dashes, PDMs, sensor kits, and accessories
Kit Supports Gen III engines with cable throttle
KIT INCLUDES
- HT-220001 - Rebel ECU
- HT-186500 - Main Harness

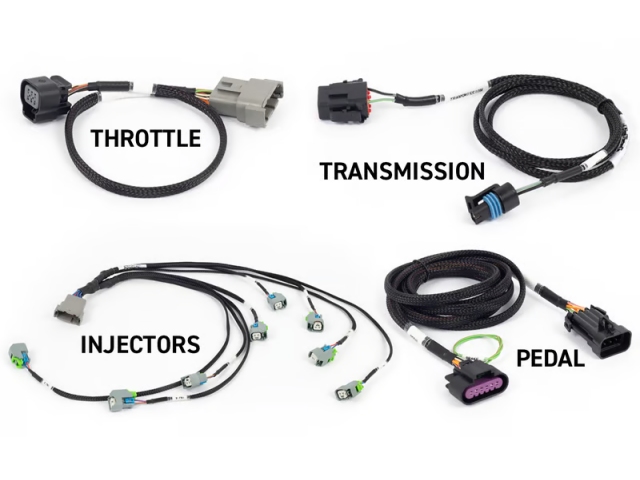

- HT-186505 - 6 Pin DBW Adaptor
- HT-186507 - Corvette pedal adaptor
- HT-186502- LS EV6 Injector Sub-Harness
- HT-187003 - T56 Transmission Harness

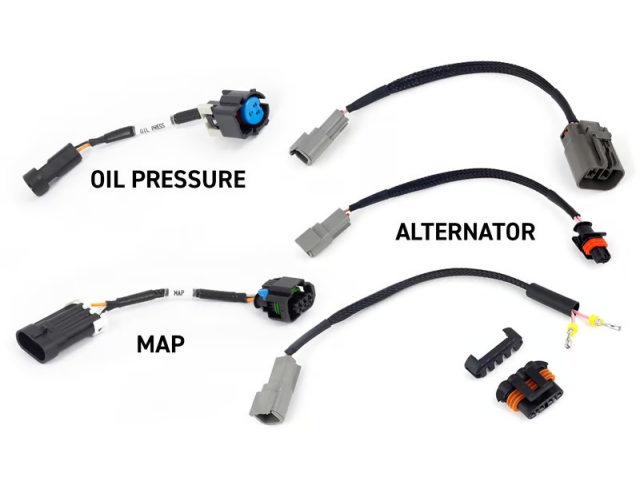

- HT-186123 - 2 Pin Bosch Alternator Harness
- HT-186124 - 4 Pin Delco Alternator Harness
- HT-186125 - 2 Pin Yazaki Alternator Harness
- HT-186510 - Gen IV Oil pressure sensor adaptor harness
- HT-186511 - Gen IV MAP sensor adaptor harness

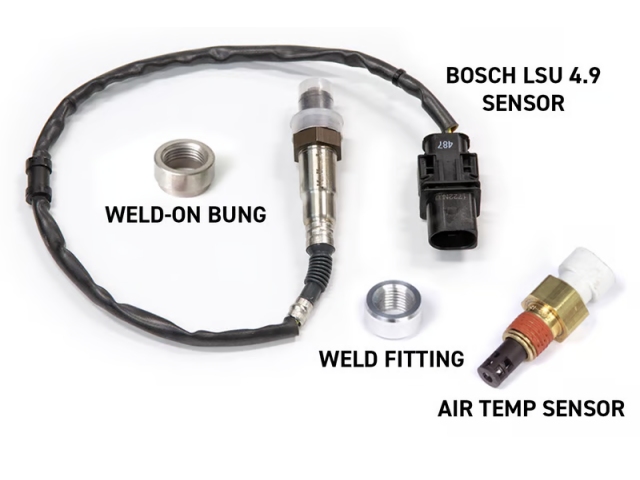

SENSOR PACK
- Bosch LSU 4.9 Sensor
- Weld on fitting for O2 Sensor
- Air Temperature Sensor M14 x 1.5
- Weld on fitting for Air Temp Sensor
SUITS: Gen IV LS - 6-pin DBW, EV6 Injectors, Manual Transmission
RESOURCES
Quickstart guide
Wiring Diagram
