The EZX is the ultimate performance upgrade for your 5th Gen Ram Cummins, offering total control over your truck with power adjustability on the fly. Offering easy installation, improved fuel economy, better towing performance and feature control through the industry's first smartphone app - you'll be amazed by what EZX can do for your truck. Compatible with both standard and high output engine variants, the throttle response and drivability is exactly what you want and need. This module is completely plug and play and leaves no trace within the system when removed for dealer service work. Engineered and developed specifically for the daily driver and towing application, EZX is a safe and emissions-friendly upgrade you'll wish you would've made sooner.

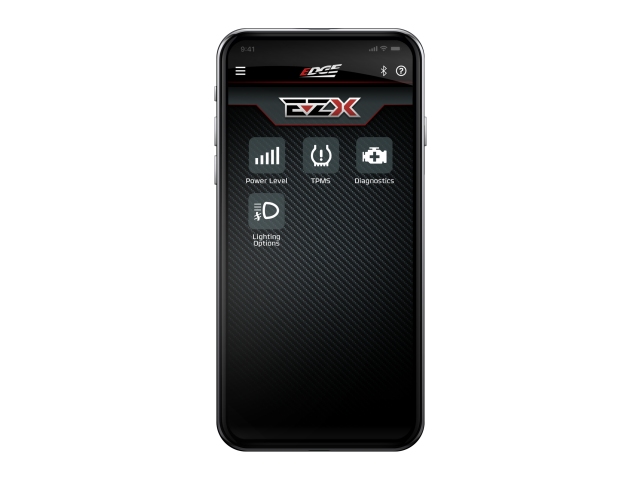

With gains as much as 60hp/130ft-lbs torque, the EZX can be adjusted through your factory steering wheel controls while driving, giving you the ability to fine tune your driving experience at your fingertips. Using the innovative smartphone app available for download through your app store (available for both Android and IOS), you gain even more access to your truck's features including calibrating for tire size and gear ratio changes, throttle pedal sensitivity, max cruise control speed, exhaust brake/tow haul button recall, TPMS settings, engine temperature protection, gear display, fog lights with high beams and even a turbo timer. The EZX app also allows you to read and clear trouble codes, check your emissions readiness status and perform a manual DPF regen cycle. EZX offers features the competition just can't at a price point that's hard to beat.
Now supports 2019-2024 Ram Cab & Chassis. 3500/4500/5500 platforms with gains as much as +46hp/120tq
*When paired with the Insight CTS3 in kit form, the two devices still work independently of each other, and the Insight CTS3 will be used for monitoring only, all EZX control is still accomplished via the smartphone app and steering wheel.
FEATURES
- 5 power levels, adjustable on-the-fly through steering wheel controls
- Level 1 - 20hp/55tq, Level 2 30hp/70tq, Level 3 40hp/90tq, Level 4 50hp/110tq, Level 5 60hp/130tq (Peak to Peak Gains)
- User adjustable throttle booster settings in each power level via app
- Tire Size Speedo Calibration via App (Up to 40" Tire Size)
- Button Recall Enable/Disable via app - Remembers Tow/Haul and Exhaust Brake settings
- Turbo timer setup and enable/disable via app. Once enabled, feature will work on every engine shutoff cycle
- Tire Pressure Monitoring Sensors Enable/Disable, Warning On/Off, and Pressure Threshold adjust via app
- Engine High Idle adjustable through steering wheel controls when in Park
- Max Cruise set speed adjustable via app (Set max cruise speed at 40-97mph)
- Gear Display in Drive on factory display Enable/Disable via app
- Fog Beams with High Beams Enable/Disable via app
- Gear Ratio Calibration via App
- Manual DPF Regen via app
- Read and clear ECM/TCM diagnostic codes via app

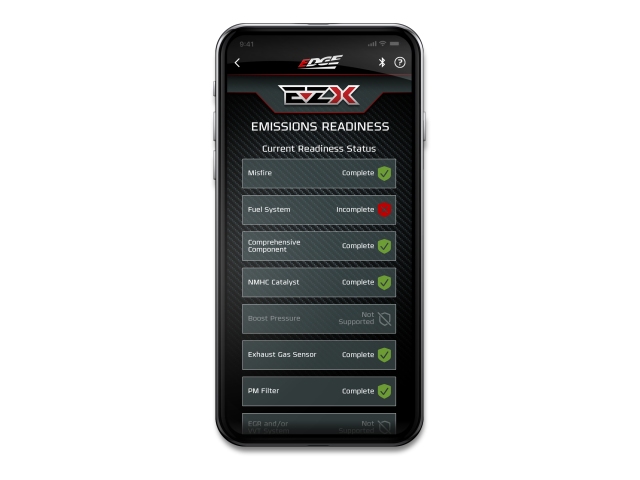

- Check Emissions Readiness monitors via app
- Engine Coolant Protection (Module adds no power until 120-degree ECT, backs down power at 240-degrees ECT)
- Now supports 2019-2024 Ram Cab & Chassis 3500/4500/5500
SPECS
50 State Legal No
Brand Edge
CARB (California) Compliant No
Category Tuners and Programmers
Custom Tuning No
Emission Code 7
Erases Fault Code Yes
Fuel Type Diesel
Grade Type Performance
Instruction Manual Included Yes
Mounting Hardware Included Yes
part type Computer Chip Programmer
Performance Tunes Yes
Product Type Inline Chips and Modules
Software Included Yes
Speedometer Yes
Sub Category Engine Service
Upgradable No
Wi-Fi Updates Smartphone App
UPC 810065212702
California Proposition 65 Required Yes
Part Number 32710
EMISSIONS
This part is legal under the provisions of EPA's Tampering Policy dated November 23rd, 2020. The company has reasonable basis (test results) to verify that this product allows the vehicle to operate within legal emissions standards and is therefore legal to be sold for on-street use in all states that accept the legal provisions of the Clean Air Act and the EPA Tampering Policy. This product is NOT LEGAL FOR SALE OR USE IN THE STATE OF CALIFORNIA. Testing with the California Air Resources Board, in order to achieve 50-state compliance, is pending with CARB. Once testing is complete with California, and an E.O. number is issued, this product will be updated to 50-state legal status.
TECH RESOURCES
Instructions - d10028400_rev00.pdf
If running an aftermarket intake system, and a check engine light is experienced under heavy load or throttle, the EZX MAF harness can be disconnected and left un-used as the performance intake is already making the requested changes in airflow and the EZX MAF inputs are not needed. Be sure to plug the EZX MAF connectors into each other if left unused to keep moisture out of connectors.
WARRANTY AGREEMENT
WARNING: THIS IS A HIGH-PERFORMANCE PRODUCT. USE AT YOUR OWN RISK.
Do not use this product until you have carefully read the following agreement.
This sets forth the terms and conditions for the use of this product. The installation of this product indicates that the BUYER has read and understands this agreement and accepts its terms and conditions
DISCLAIMER OF LIABILITY
Edge Products Inc. and its successors, distributors, jobbers, and dealers (hereafter SELLER) shall in no way be responsible for the product's proper use and service. THE BUYER HEREBY WAIVES ALL LIABILITY CLAIMS.
The BUYER acknowledges that he/she is not relying on the SELLER's skill or judgment to select or furnish goods suitable for any particular purpose and that there are no liabilities which extend beyond the description on the face hereof and the BUYER hereby waives all remedies or liabilities, expressed or implied, arising by law or otherwise, (including without any obligations of the SELLER with respect to fitness, merchantability and consequential damages) or whether or not occasioned by the SELLER's negligence. The SELLER disclaims any warranty and expressly disclaims any liability for personal injury or damages. The BUYER acknowledges and agrees that the disclaimer of any liability for personal injury is a material term for this agreement and the BUYER agrees to indemnify the SELLER and to hold the SELLER harmless from any claim related to the item of the equipment purchased. Under no circumstances will the SELLER be liable for any damages or expenses by reason of use or sale of any such equipment. The SELLER assumes no liability regarding the improper installation or misapplication of its products. It is the installer's responsibility to check for proper installation and if in doubt, contact the manufacturer.
LIMITATION OF WARRANTY
Edge Products Inc. (hereafter "SELLER") gives Limited Warranty as to description, quality, merchantability, fitness for any product's purpose, productiveness, or any other matter of SELLER's product sold herewith. The SELLER shall be in no way responsible for the product's open use and service and the BUYER hereby waives all rights other than those expressly written herein. This Warranty shall not be extended or varied except by a written instrument signed by SELLER and BUYER. The Warranty is Limited to one (1) year from the date of sale and limited solely to the parts contained within the product's kit. All products that are in question of Warranty must be returned shipping prepaid to the SELLER and must be accompanied by a dated proof of purchase receipt. All Warranty claims are subject to approval by Edge Products Inc. If the BUYER sends back a failed unit that is out of warranty and chooses to buy a refurbished unit, the refurbished unit will only carry a 60 day warranty. If the BUYER purchases a new unit at a predetermined discounted rate, it will have the standard 1-year warranty. Under no circumstances shall the SELLER be liable for any labor charged or travel time incurred in diagnosis for defects, removal, or reinstallation of this product, or any other contingent expenses. Under no circumstances will the SELLER be liable for any damage or expenses insured by reason of the use or sale of any such equipment. This warranty is VOID for any new products purchased through auction websites. WARRANTY IS VALID ONLY FOR NEW PRODUCTS PURCHASED THROUGH AUTHORIZED DEALERS (proof of purchase required for all warranty claims).
EXTENDED WARRANTY
Edge Products Inc. (hereafter "SELLER") offers an additional 1-year warranty for an additional fee. An extended warranty covers mechanical and electrical components with full replacement and shipping. No gimmicks or head fakes, just the assurance knowing you are covered by Edge Products. Prices will vary based on product line and limited to the following product lines.
- EvoHT2
- Insight CS2/CTS2
- Evolution CS2/CTS2
- Juice w/ Attitude CS2/CTS2
