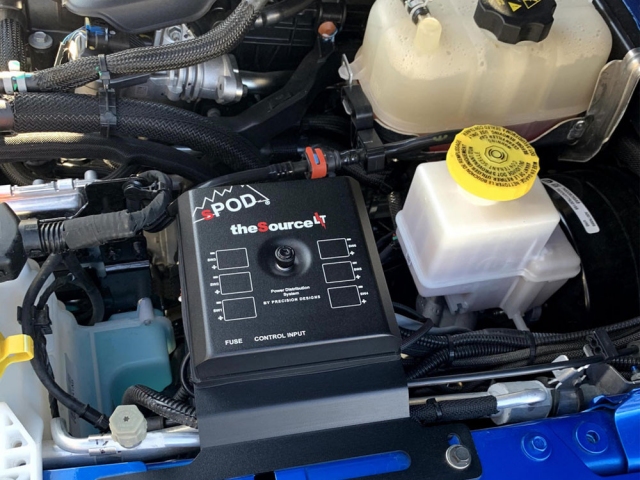

The SourceLT w/Mini6 for the Jeep JL/JT will save hours of wiring & installation time! It is a small, solid-state 6-circuit control system that provides a clean (one cable into the cab!) and safe way to power and control 12VDC accessories. Due to the small footprint of the SourceLT, the placement options are endless! No cutting, fishing wires into the cab or tapping into the vehicle‘s electrical system. It’s the perfect over-all solution for all your aftermarket electrical accessories with options unmatched by anyone.
- 6 circuits rated at 30 amps at 12.5 VDC per circuit
- 12-position terminal block (easily attach accessories)
- Controller cable (10 foot) for simple plug-n-play connectivity to the switch controller
- Integrated low voltage cutoff (LVCO) battery protection w/ optional override
- Self-healing fault protection circuits (from 1.5 to 30amps)
- Current-sensing MOSFETs controlled by a microprocessor (no fuses & no relays)
- 100amp in-line fuse
- Nylon braided battery cables are hi-strand crosslinked copper wire with a silicone jacket
- Operates on 12VDC
- Built-in Bluetooth capabilities for remote control
- Protection against: overheating, over-current, shorts, reverse polarity and field collapse
- On-demand wireless software updates/upgrades
HARDWARE
- Powder coated steel base w/ built in hardware
- Silicone gasket for weatherproofing
- Simple thumb screw fastening aluminum lid with convenient silkscreened outlines for placement of supplied legends
- Universal & vehicle specific mounting options
- Robust insulated base and cover

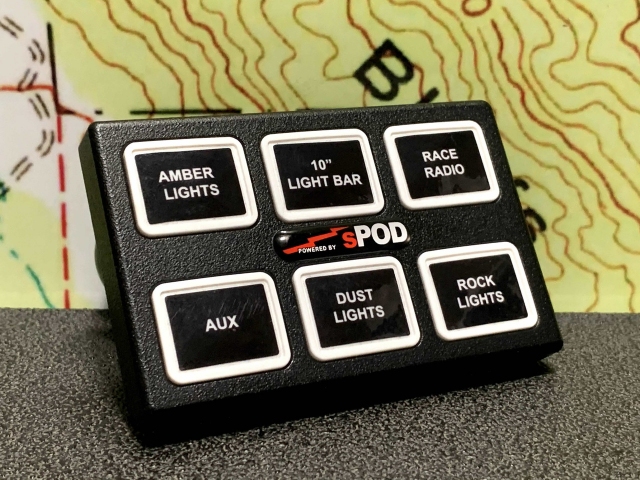

MINI6 CONTROL PANEL
- Panel Dimensions: 2.062" W x 3.260" L x .375" D
- Programmable modes: momentary / latch and backlight brightness level
- Visual feedback circuit ON indicator light for each button
- Includes one sheet of 72 standard legends
- Power-saving Deep Sleep Mode: Deactivates after 6 hours of inactivity
- Silicone buttons for easy touch activation
- Can run in conjunction with a 6-switch panel
- CAT-6 Ethernet connected (up to 25 feet from SourceLT)
FEATURES AVAILABLE THROUGH sPOD MOBILE APP
- Dimming
- Strobe
- Flash
- Momentary
- Switch Linking
- On-Road and Off-Road mode of operation
BLUETOOTH REQUIREMENTS
- Access to iTunes or Google Play Store to download the sPOD app
- Bluetooth 4.0 compatible
- Compatible with Android devices running 8.0 Oreo (API 26) or later
- Compatible with iOS 11 or newer, iPhone 7s or newer, iPad 2 or newer, iPad mini
- Must have existing sPOD system
INSTALLATION INSTRUCTIONS
sPOD 873180 Installation Sheet
DISCLAIMER
Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care. Buyer acknowledges that some products may only be used when off-roading, and Buyer will comply with all vehicle and road safety guidelines. Buyer is solely responsible for (and will indemnify and hold Bestop harmless for) any claims, losses, damages, fines, fees, costs, or other amounts arising out of Buyer's non-compliance with these provisions.
WARRANTY AND REPAIR POLICY
sPOD offers a non-transferable 5-year limited warranty on electronic parts and components from manufacturers defects for all units purchased after 4/1/23. sPOD will repair or replace items in question and return them to Buyer at no charge. If the identical product is no longer available, sPOD will replace with a similar product of equal value. sPOD will not be responsible for any indirect or consequential damages in connection with defective merchandise.
Exclusions:
Products that have been subjected to abuse, misuse, accident, alteration, modification, improper installation, tampering, or any use other than the product's designed purpose will void the warranty. The sPOD warranty excludes the following: Installation errors, abuse, misuse or crash damage, reverse polarity of battery cables, changing the 2 amp fuse for any other rated fuse, cutting off our connectors, splicing into our wires/harnesses, attaching anything other than our battery cables to our positive and negative terminal studs on our BantamX/SourceLT boards, changing our supplied switches (switch body), removing the actuators without using our specific actuator removal tool.
This warranty shall be automatically voided if the items sent for warranty replacement are modified in any way or were not used as intended or applicable. Additionally, this warranty excludes normal wear and tear. NOTE: Any or all aftermarket brake controllers, hi-amp solenoids or any hi-amp relay that is attached to the same positive battery post will cause irreversible damage to the sPOD system. This will void all warranties. This warranty shall be automatically voided if the items sent for warranty replacement are returned with water/liquid/chemical damage to any electrical component. The buyer MUST provide a copy of the original invoice or have completed the online product registration. Shipping responsibilities and/or charges will be determined once a claim has been opened. sPOD systems will be repaired or replaced at manufacturer’s discretion.
This warranty does not cover miscellaneous expenses, including, but not limited to, outside labor costs incurred for the installation, removal, replacement, and repair or troubleshooting. Please contact sPOD to assist with troubleshooting prior to uninstalling your entire system as the solution may not require that the system be removed. All claims must be made in writing by mail or e-mail directly to sPOD:
