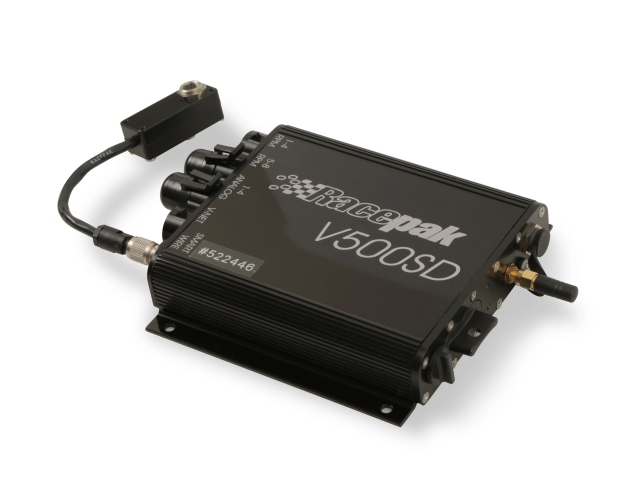

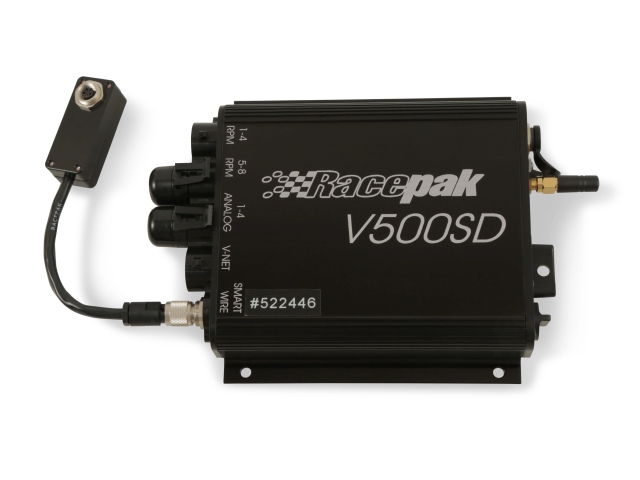

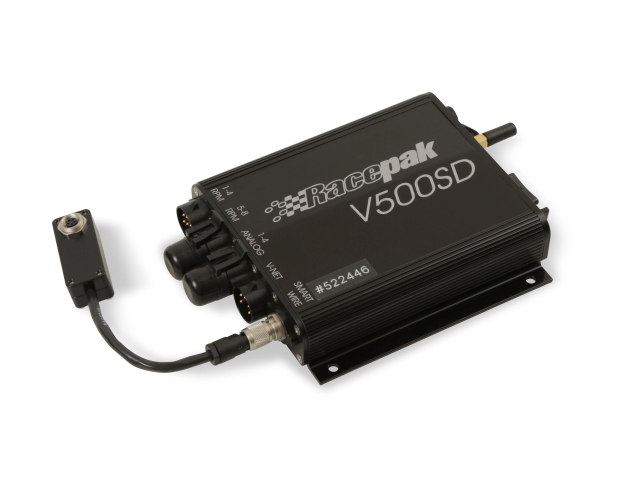

RACEPAK VS500D DATA LOGGER

The new Racepak V500SD Serialized Data Loggers include all of the features and benefits of their successors, but now also include built-in pre-configured data analysis channels allowing you to make quick decisions based on real data between rounds at the track.

The new secured loggers protect your vital system data with a serialization number that is unique for each individual logger. Not only does this feature provide protection for your data, but it also allows you to quickly organize logs between rounds.

Out-of-the-Box, this system will data log:
Engine RPM
Drive Shaft RPM (Requires Driveshaft Collar Sold Separately)
Accelerometer G-Meter
Lateral G-Meter
Battery Voltage

List of Pre-configured data analysis math channels are included in the DataLink V5 software:
Engine vs. Driveshaft Ratio
Clutch % Slip
Clutch Slip Ratio
Trans Ratio
RR, LR, RF, LF Shock Velocity
Average Air/Fuel Ratio
Average Exhaust Gas Temperatures
CC's Per Turn (for Fuel Flow)
Track Time
G-Meter MPH, G-Meter Distance (Feet)
60 ft, 330 ft, 660 ft, 1000 ft, 1320 ft Clock Markers

FEATURES:

• With sampling rates of up to 1000 frames per second, the V500SD series of data recorders allow you to monitor up to 71 channels of sensor information.
• Unlocked math channels for the following calculations: Clutch % Slip, Trans Ratio, Shock Velocity, Average AFR (Air/Fuel Ratio), Average EGT (Exhaust Gas Temperature), G-Meter MPH - and many more.
• The included SD memory card allows you to transfer your vital sensor information to your laptop quickly, getting you back in the lanes without fumbling with cables.
• The 71 total channels break down as follows: 56 V-Net; 4 Hard-wired Analog; 8 Hard-wired Digital; and 3 Internal Sensors (Battery Voltage, Accel/Decel G-Meter, and Lateral G-Meter)
• Dedicated port to interface a Racepak Smartwire power control module for data logging and control

SPECS
Application Drag Racing
Brand Racepak
Category Vehicles, Equipment, Tools, and Supplies
Emission Code 5
Harness Style Door Car - Battery
Ignition Type Battery Ignition
Operating Voltage 12-18 volts
Part Type Data Logging Unit
Product Type Data Loggers
Start Record Method Momentary Button
Sub Category Power, Air, and Hand Tools and Accessories
Weight 17 Ounces
UPC 090127089255
Part Number 200-KT-V500SD1S

EMISSIONS
This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.

TECH RESOURCES
DataLink V5

Instructions - techlibrary_datalink_manual-v-series.pdf

Instructions - techlibrary_downloading_and_installing_firmware_using_the_racepak_sd_card.pdf

Instructions - techlibrary_qstart_vnet.pdf

Instructions - techlibrary_v300-500manual.pdf

Systems ordered online DO NOT INCLUDE a driveshaft collar.

WARRANTY INFORMATION
Racepak Warranty
