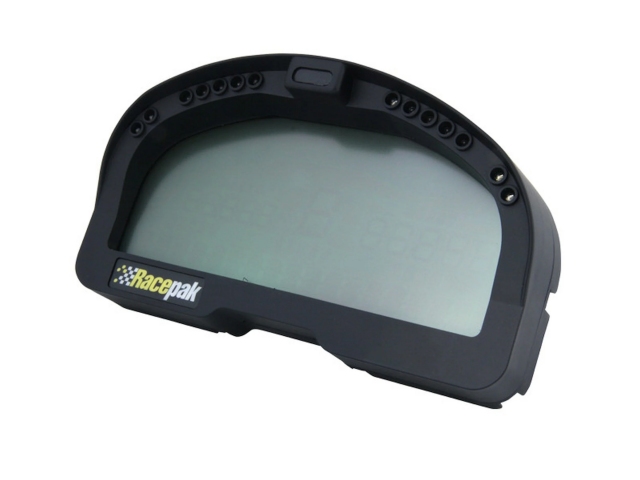

The IQ3D is designed for the sportsman drag racer looking for a compact, all-in-one solution. It combines the look and feel of our popular IQ3 dash with a robust, built-in data logger. The IQ3 Drag Logger Dash mergest Racepak's V-Net single cable sensor technology and with a fully programmable display, creating a complete data center.
The full feature dash bundle kit includes the ability to monitor Engine RPM, Driveshaft RPM, Trans Brake Release, Water Temp, Oil Press, Battery volts. The datalink II software included with IQ3 Drag dash provides professional-level data analysis capabilities, but in an easy to learn format.
FEATURES:
- Channels: 12 Total - 6 internal and option to expand 6 V-Net digital/analog
- Sample Rate: V-Net records data up to 100 frames per second
- Memory: up to 16GB microSD card
- 6 external V-Net sensor inputs with optional high speed logging modules
- Displays up to 28 inputs via 4 pages of microSD Memory.
- Blue Backlight for a stylish look.
- Gear Indicator
- Eight user definable alarms with on screen warning text and lights
- User defined 5 character sensor input names
- User defined shift points
- Shielded, low glare display for sunlight viewing
- Metric and English units for multiple display options.
SPECS
Application Drag Racing
Brand Racepak
Category Gauges and Gauge Accessories
Emission Code 5
Model 250-DS-IQ3D
Operating Voltage 12-18 volts
Product Type Digital Dash
Start Record Method Momentary Button
UPC 815046029553
Part Number 250-DS-IQ3D
EMISSIONS
This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.
TECH RESOURCES
IQ3 Drag Race Logger Dash Firmware
DataLink II v4.8.12
Instructions - techlibrary_iq3dr_firmware_update_instructions.pdf
Instructions - techlibrary_iq3d-manual-release-rev-d.pdf
https://documents.holley.com/6e190d3f692dfd2f8f18ee638c72da85e5a32482.pdf
Instructions - techlibrary_iq3d_firmware_revision_log.pdf
Start Recording: Utilized to start a recording when either button is held for +5 seconds. REC will be displayed in dash display area during recording. The Grey/White wire can be utilized for this function by default. Compatible ECU systems include the following: AEM V2/EMS-4 Big Stuff 3 Electromotive TECGT EMS EM-Tech ECU Emtron ECU FAST XFI Fuel Tech (200,250,300,350,500v1,500v2, 600) Holley Dominator InjPro Life Racing F88 Link G4+ Series MaxxECU MEFI-4B MegaSquirt-III (DIY Autotune) MicroTech MoTeC CAN (Data set 3) MSD Atomic LS MSD Atomic TBI OBD-II (2008 and later - for vehicles designed to be sold in the USA) Pro EFI User Configured (CAN bus knowledge required) The IQ3D connects to these ECU systems using EFI adapter cables.
