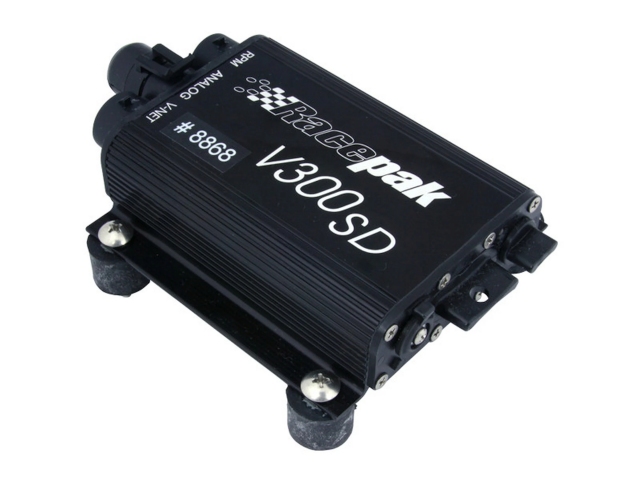

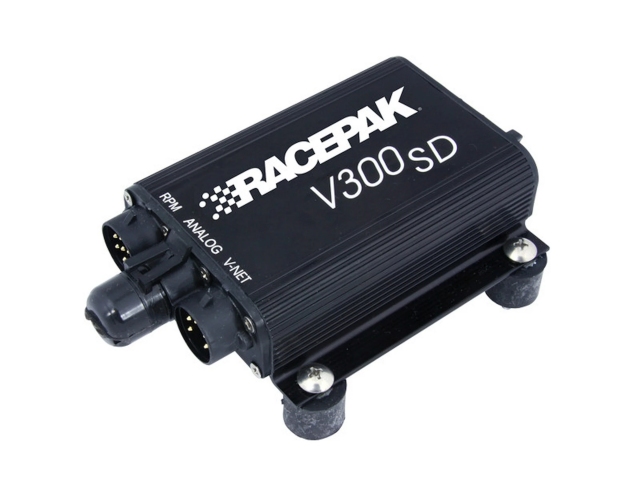

The new Racepak V300SD Easy Access Data Loggers include all of the features and benefits of their successors, but now also include built-in pre-configured data analysis channels allowing you to make quick decisions based on real data between rounds at the track.
The new Easy Access loggers no longer require the use of a security key, allowing you to look at your data with any laptop that has the latest version of Datalink V5 installed.
Out-of-the-Box, this system will data log:
Engine RPM
Drive Shaft RPM (Requires Driveshaft Collar Sold Separately)
Accelerometer G-Meter
Lateral G-Meter
Battery Voltage
List of Pre-configured data analysis math channels are included in the DataLink V5 software:
Engine vs. Driveshaft Ratio
Clutch % Slip
Clutch Slip Ratio
Trans Ratio
RR, LR, RF, LF Shock Velocity
Average Air/Fuel Ratio
Average Exhaust Gas Temperatures
CC's Per Turn (for Fuel Flow)
Track Time
G-Meter MPH, G-Meter Distance (Feet)
60 ft, 330 ft, 660 ft, 1000 ft, 1320 ft Clock Markers
FEATURES:
- With sampling rates of up to 1000 frames per second, the V300SD series of data recorders allow you to monitor up to 83 channels of sensor information.
- Unlocked math channels for the following calculations: Clutch % Slip, Trans Ratio, Shock Velocity, Average AFR (Air/Fuel Ratio), Average EGT (Exhaust Gas Temperature), G-Meter MPH - and many More.
- The included SD memory card allows you to transfer your vital sensor information to your laptop quickly, getting you back in the lanes without fumbling with cables.
- The 83 total channels break down as follows: 72 V-Net; 4 Hard-wired Analog; 4 Hard-wired Digital; and 3 Internal Sensors (Battery Voltage, Accel/Decel G-Meter, and Lateral G-Meter)
SPECS
Application Drag Racing
Brand Racepak
Category Gauges and Gauge Accessories
Emission Code 5
Harness Style Door Car - Battery
Ignition Type Battery Ignition
Operating Voltage 12-18 volts
Product Type Data Loggers
Start Record Method Momentary Button
UPC 090127084946
Part Number 200-KT-V300SD1G
EMISSIONS
This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.
TECH RESOURCES
Instructions - techlibrary_downloading_and_installing_firmware_using_the_racepak_sd_card.pdf
Driveshaft Collar Sold Separately
WARRANTY INFORMATION
Racepak Warranty
