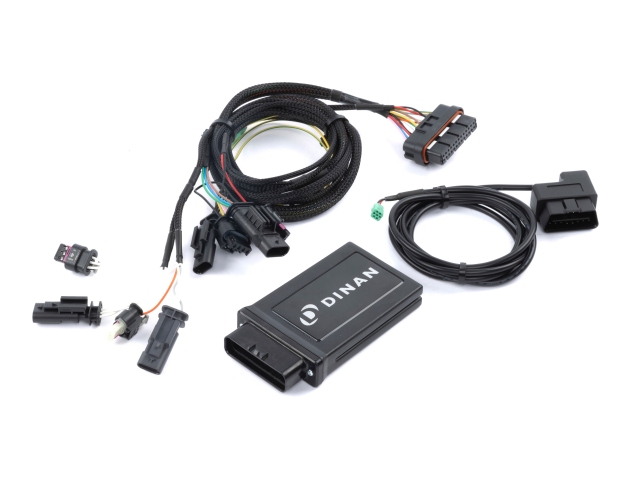

Developed wholly from the ground up, the Dinan Power Control Unit (PCU) is an evolutionary step in Dinan in-line tuning modules based off over a decade of lessons learned in the category. At its core the PCU is similar to its precursors and installs in between select sensors and the ECU, adjusting these signals in order to achieve increased performance the stock programming is unable to approach. However, what sets the PCU apart is its integration into more than just the fundamental boost sensors but also additional connections -- inclusive of OBDII. The result is a more capable system that can do so much more than just increase power. Live monitoring of vehicle health via logging, customizable gauges, and code reading/clearing, among others, are now possible ensuring a seamless tuning experience even a novice can be comfortable with.
The Dinan PCU is controlled by a free Bluetooth app, available for both iOS and Android, and is home to all the potent features the device offers. Equipped with 5 different pre-set performance levels, in addition to stock, you can choose to select your desired output and enjoy more power for a true install and forget experience, or you can opt to engage in the more advanced features at your fingertips. Boost by gear customization, as an example, allows you to limit power delivery as you see fit in lower gears ensuring optimum traction and a perfect launch. Where the PCU shines however is in data acquisition and monitoring that gives insight into the vehicles overall health and makes certain your tuned vehicle is always running at peak potential.
Safety and reliability have been cornerstones of the Dinan brand for generations and not only does the Dinan PCU not hinder any factory safeguards or emissions controls but incorporates its own safeties as well. Going one step beyond our own internal protections, the PCU also grants the end user the ability to monitor up to 20 different engine parameters in real time via customizable in-app gauges for verification of worry-free operation. Those same parameters can also be logged/viewed in app (or exported to CSV) for further scrutiny if desired.
All told, the Dinan PCU delivers more power and more features with improved reliability and drivability than ever offered before. Performance without sacrifice is alive and well!
FEATURES
- More Power: Max gains between +61-67 HP and +57-73 lb-ft TRQ (Wheel), +70-76 HP and +61-77 lb-ft TRQ (Crank), depending on application
- Bluetooth connectivity and control via free iOS or Android PCU apps
- Multiple power levels, plus stock, to choose from
- Designed for peak performance utilizing pump gas fueling, 91 octane tuning (levels 1-3), and 93 octane tuning (Levels 4-5)
- Improves power and torque across the entire RPM range
- Customizable in-app gauges
- Real-time logging up to 20 (16 max at one time) parameters courtesy of CAN/OBDII integration and the supplied PCU app
- Logs can be viewed directly in the PCU app or exported/emailed as a CSV file for more detailed scrutiny
- Boost by gear user customization to reduce unwanted wheel spin in lower gears
- Read and clear fault codes as well as check emissions readiness
- Retains all factory safeguards and works flawlessly with onboard emissions controls
- Unaffected by factory updates
- Plug-and-play installation
- Unplug and go back to stock at any time or transfer the unit (Not VIN locked)
- Designed, developed and manufactured entirely in the USA
- 2-YR, unlimited mileage product warranty
SPECS
Brand Dinan
Category Air and Fuel Delivery
Dinan Point Value 3
Emission Code 7
Labor Time (Hours) 2.5
Mounting Hardware Included Yes
Product Type Inline Module
Sub Category Fuel Injection System and Related Components
Warranty 2yr/Unlimited Miles
UPC 810065216274
Part Number D440-0200
EMISSIONS
This part is legal under the provisions of EPA's Tampering Policy dated November 23rd, 2020. The company has reasonable basis (test results) to verify that this product allows the vehicle to operate within legal emissions standards and is therefore legal to be sold for on-street use in all states that accept the legal provisions of the Clean Air Act and the EPA Tampering Policy. This product is NOT LEGAL FOR SALE OR USE IN THE STATE OF CALIFORNIA. Testing with the California Air Resources Board, in order to achieve 50-state compliance, is pending with CARB. Once testing is complete with California, and an E.O. number is issued, this product will be updated to 50-state legal status.
VEHICLE APPLICATIONS
2023-2025 BMW G87 M2
2021-2025 BMW G80 M3
2021-2025 BMW G82/G83 M4
2020-2024 BMW F97 X3M
2020-2025 BMW F98 X4M
TECH RESOURCES
Instructions - D440-0200 (-W).pdf
SKU variations / Warranty: The Dinan S58 PCU is available with a standard 2-YR product only warranty (Dinan S58 PCU - D440-0200) or a factory matching 4-YR/50k mile warranty (Dinan+ S58 PCU - D440-0200-W) that covers both consequential damages as well as labor reimbursement. Functionally, the units are identical but carry different warranty terms. In the case of the factory matching warranty Dinan+ PCU, the warranty ONLY applies to the first VIN the unit is installed on. Successive VIN's will not be granted warranty coverage from Dinan.
DINAN LIMITED WARRANTY
We consider our limited warranty coverage to be a very important component of each Dinan Performance Product and we want you to fully understand it. Dinan's objective is to enhance the enthusiast's driving experience by designing and manufacturing the best performing and highest quality automotive products possible. Our limited warranty is intended to cover Dinan products when they are used in the manner for which they were originally designed. Like any manufacturer, we cannot be responsible when our products are subjected to misuse, improper installation, misapplication, modification or neglect. Consumers are encouraged to familiarize themselves with the specifics of Dinan's Limited Warranty, including exclusions and potential effects to the manufacturer's limited new car warranty, prior to making the decision to purchase and install Dinan products and systems. Consumers are invited to contact Dinan at 800-341-5480 with any questions regarding Dinan's limited warranty coverage, procedures, exclusions, etc.
Enthusiast customers should also be aware of the Magnuson Moss Warranty Act which can be viewed in its entirety here.
CARS COVERED BY THE ORIGINAL VEHICLE MANUFACTURER’S NEW CAR LIMITED WARRANTY
US and Canadian Specification Vehicles Only. Outside of the aforementioned areas please contact your importer for details.
If your vehicle is currently covered by the vehicle manufacturer's new car limited warranty, Dinan products are warranted for the remaining term of the vehicle manufacturer's new car limited warranty. The manufacturer's new car warranty is limited to 4 years or 50,000 miles (80,000 kilometers in Canada), commencing on the date of first retail sale or the date the vehicle is first placed in-service as a demonstrator or company vehicle, whichever is earlier. Dinan's warranties are transferable when ownership of the vehicle into which the Dinan products were originally installed is sold.
To obtain service under this warranty, the vehicle must be brought, upon discovery of a malfunction or defect in materials and/or workmanship, to the workshop of any Authorized Dinan Dealer, during normal business hours. Proof of purchase in the form of a lawful invoice is required. The Authorized Dinan Dealer will, without charge for parts or labor, repair or replace the defective Dinan component(s), as well as any original vehicle manufacturer's component(s) that may have been directly affected by a Dinan component, using new or authorized remanufactured parts. The decision to repair or replace said parts is at the sole discretion of Dinan and/or the original vehicle manufacturer. Parts for which replacements are supplied under this limited warranty become the property of Dinan and/or the original vehicle manufacturer. In all cases, a reasonable period of time must be allowed for warranty repairs to be completed after the vehicle is delivered to the Authorized Dinan Dealer.
CARS NO LONGER COVERED BY THE ORIGINAL VEHICLE MANUFACTURER'S NEW CAR LIMITED WARRANTY
Dinan Performance Products are warranted for a 2-year, unlimited mileage period from the date of original purchase. Dinan's warranties are transferable when ownership of the vehicle into which the Dinan products were originally installed is sold.
To obtain service under this warranty, the vehicle or Dinan product must be brought, upon discovery of a malfunction or defect in materials and/or workmanship, to any Authorized Dinan Dealer during normal business hours. In the event of a warranty claim, Dinan will repair or replace, at its sole discretion, any defective Dinan component upon receipt of the item and proof of the original purchase in the form of a lawful invoice. This warranty does not include reimbursement for repairs to any original vehicle manufacturer's component(s) that may have been affected by a Dinan component. Labor charges associated with the repair or replacement of a Dinan product will be reimbursed at the Authorized Dinan Dealer's standard hourly rate, based upon the original vehicle manufacturer's and/or Dinan's schedule of flat rate labor times. The defective component must be returned to Dinan for verification of the defect before any warranty adjustment will be made. A reasonable period of time must be allowed for warranty replacement, shipping and/or repairs to be completed after the vehicle or product is received by an Authorized Dinan Dealer or Dinan's facility.
DINANTRONICS SPORT, X & DINANFLASH HANDHELD PRODUCT WARRANTIES
DINANTRONICS Sport, X and DINANFLASH Handheld products are warranted against material and workmanship defects for a 1-year, unlimited mileage period from the date of original purchase. This warranty does not cover any consequential damages (neither parts nor labor) that may be caused as a result of the installation or use of this product. To obtain service under this warranty, Dinan tech support must be made aware of the malfunction or defect in materials and/or workmanship of the DINANTRONICS Sport/X module or DINANFLASH Handheld upon discovery, via an Authorized Independent Dinan Dealer or directly to Dinan during normal business hours. In the event of a valid warranty claim, Dinan will repair or replace, at its sole discretion, any defective Dinan component upon receipt of the item and proof of the original purchase in the form of a lawful invoice. In the event of a defect the defective unit must be returned to Dinan for verification of the defect before any reimbursements will be issued. A reasonable period of time must be allowed for warranty replacement, shipping and/or repairs to be completed after the product is received by an Authorized Dinan Dealer or Dinan's facility.
REFURBISHED PRODUCT WARRANTY
Refurbished products are warranted against material and workmanship defects for a 90-day, unlimited mileage period from the date of original purchase. This warranty does not cover any consequential damages (neither parts nor labor) that may be caused as a result of the installation or use of this product. To obtain service under this warranty, Dinan tech support must be made aware of the malfunction or defect in materials and/or workmanship of the refurbished product upon discovery, via an Authorized Independent Dinan Dealer or directly to Dinan during normal business hours. In the event of a valid warranty claim, Dinan will repair or replace, at its sole discretion, any defective Dinan component upon receipt of the item and proof of the original purchase in the form of a lawful invoice. In the event of a defect the defective unit must be returned to Dinan for verification of the defect before any reimbursements will be issued. A reasonable period of time must be allowed for warranty replacement, shipping and/or repairs to be completed after the product is received by an Authorized Dinan Dealer or Dinan's facility.
RACING ONLY PRODUCTS
Due to the nature of the intended use, Dinan Racing Products are guaranteed against defects in workmanship only. These products are not warranted against wear and/or failure under any circumstances. These products do not fall under the standard Dinan Limited Product Warranty. Racing-only parts may also affect the BMW warranty and emissions warranty.
THE DINAN LIMITED WARRANTY SPECIFICALLY EXCLUDES:
Return shipping charges, towing charges, rental car fees damage to a component or assembly due to the installation of replacement parts with specifications that differ in any material respect from the original vehicle manufacturer's or Dinan parts, damage resulting from the unauthorized modification of a Dinan part or assembly, damage resulting from the use of other manufacturer's products in conjunction with Dinan products or systems, non-DCT clutch assemblies, brake rotor warp, friction materials, maintenance services and parts when replaced during maintenance such as spark plugs, lubricants, fluids, engine tune-up parts, replacement of filters, coolant and refrigerant, mechanical adjustments or repairs which result from normal wear and tear, drive-belts, light bulbs, damage due to the failure to perform maintenance services at the specified intervals or in accordance with the instructions in the owner's manual from the original vehicle manufacturer or Dinan's product instructions, damage attributable to negligence or abuse, improper installation, improper treatment or treatment contrary to the instructions in the owner’s manual from the original vehicle manufacturer or Dinan's product instructions, engine damage resulting from alteration of Dinan's original boost pressure, damage resulting from the use of improper or contaminated fuel, damage occurring through corrosion resulting from weak or improper coolant, damage to a Dinan component as a result of a collision or improper collision damage repairs, any vehicle operated in any competitive event or subjected to aggressive track conditions, custom-designed competition parts, damages resulting from loss of time, inconvenience or loss of the use of the vehicle, damage resulting from environmental influences, flood, accident, fire damage, or road salt corrosion, re-manufactured or refurbished products or components (these products are clearly identified as re-furbished and are warranted for the period specified for that particular product).
GENERAL
The installation of Dinan Performance Products and systems may affect the vehicle manufacturer's new car limited warranty. The vehicle manufacturer's new car limited warranty may not apply to modifications to a vehicle or the installation of any performance accessories or components attached to the vehicle which substantially alter the original engineering and/or operating specifications or which result in damage to other original vehicle manufacturer's components.
This warranty shall be null and void if the vehicle identification number has been altered or cannot be read, if the odometer has been replaced or altered and the true mileage cannot be determined, if the vehicle has been declared a total loss or sold for salvage purposes, or if the vehicle has been used in any competitive event.
These warranties give you specific legal rights, and you may also have other rights, which vary, from state to state.
The duration of any implied warranties, including the implied warranty of merchantability and fitness for a particular use, is limited to the duration of the express warranties herein. Dinan hereby excludes incidental and consequential damages, including loss of time, inconvenience, or loss of the use of the vehicle, for any breach of any express or implied warranty, including the implied warranty of merchantability and fitness for a particular use, applicable to the product.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations and exclusions may not apply to you.
Statement Revised 10/08/2021
